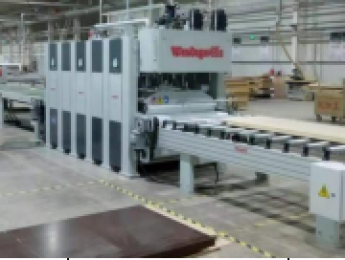

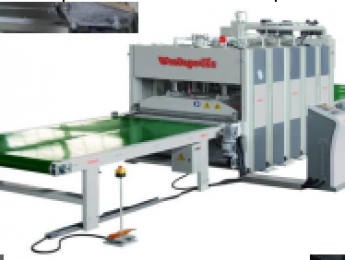

VR624*8/16 短周期热压机 MÁY ÉP NHIỆT CHU KỲ NGẮN Short cycle heat press

VR624*8/16 短周期热压机 MÁY ÉP NHIỆT CHU KỲ NGẮN
Short cycle heat press
1 进料皮带运输机 máy băng tải curoa nạp phôi: 规格quy cách 1300*2500mm，数量số lượng 1
2 自动进出料压机 máy ép nạp xả phôi tự động MY624*8/16 ，数量 số lượng 1
3 出料滚筒运输机 Băng tải con lăn xả phôi 1300*2500mm ，数量 số lượng 1
4 PLC 控制操纵台，数量 1
* 进料皮带运输机Feed Belt Conveyor ：数量 Quantity  1
    最大输送规格Maximum conveying specification ： 2500*1300mm
    运输速度 Transport speed： 5-18m/min
    操作高度Operating height： 850mm
    装机功率 Installed power： 1.1kW
* 自动进出料压机Automatic feeding and discharging press
    公称总压力 Nominal total pressure： 1600kN
    工作层数Number of working layers： 1 层layer
    压板数量及规格The number and specification of the platen:2500*1300*42mm
    热压板距离Hot plate distance： 150mm
    加压油缸数量及直径 Number and diameter of pressurized cylinders: 10—Ø85mm
    提升油缸数量及直径Number and diameter of lifting cylinders: 2—Ø85mm
    进出料方式： 电动，纵向
Feeding and discharging method: electric, vertical
    进料速度 Feeding speed: 12m/min(变频调整frequency conversion adjustment)
    控制方式： 电动 Control method: electric
    整机功率 Machine power： 44.05kW
    最高工作温度Maximum working temperature： 120℃
    加热方式： 电加热   Heating method: electric heating
    加热介质： 导热油 Heating medium: heat transfer oil

备注:1、配安全防护罩、标识警示、声讯警示；
Remarks: 1. Equipped with safety shield, logo warning, and sound warning;
2、开启、闭合配安全声讯警示Open and close with safety sound warning

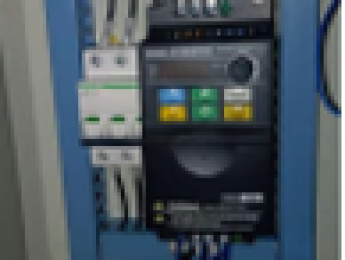

3、传输速度可调（变频调速）The transmission speed is adjustable (frequency conversion speed regulation)
4、同步采用齿轮齿条动作，轴采用镀铬材料，经久耐磨
The synchronization adopts gear rack action, and the shaft is made of chrome-plated material, which is durable and wear-resistant.
* 出料辊筒运输机：Outlet roller conveyor: Quantity 数量1
    最大运输宽度Maximum shipping width： 1300mm
    最大运输长度Maximum Shipping Length： 2500mm
    运输速度Transport speed: 5-18m/min
    装机功率Installed power: 0.75kw
* PLC 控制系统，PLC control system, quantity 数量1
基本配置basic configuration:：
纵向自动进出料，一次完成组坯，最大限度避免由于人工装料造成的板材重叠及速度上的缺陷，更能保证工件压贴质量,满足不同规格的工件复合压制； 工作台工作间距小， 闭合速度快，大大提高生产速度；
工作台间距最大可调至 150mm 方便清理；
Longitudinal automatic feeding and unloading, complete blank grouping at one time, avoid plate overlap and speed defects caused by manual loading to the greatest extent, and can ensure the quality of workpiece pressing and meet the composite pressing of workpieces of different specifications; the working distance of the worktable is small, closed Fast speed, greatly improving the production speed;
The working table spacing can be adjusted up to 150mm for easy cleaning;

1. 主机机架采用型钢整体焊接结构， 强度安全系数高,变形量小， 可靠稳定。The main frame adopts the overall welded structure of section steel, with high strength safety factor, small deformation, reliable and stable.
2. 工作台采用焊接结构， 强度安全系数高,变形量小，可靠稳定
The worktable adopts welded structure, with high strength safety factor, small deformation, reliable and stable.
3. 热压板： 选用整体轧制的钢板材料， 采用实板深孔钻孔工艺， 孔道为环绕式， 进出油孔为大孔径， 因此升温速度快， 导热均匀， 热耗能低 Hot-pressed plate: The whole rolled steel plate material is selected, and the solid plate deep hole drilling process is adopted. The hole channel is a surrounding type, and the oil inlet and outlet holes are large in diameter, so the heating speed is fast, the heat conduction is uniform, and the heat energy consumption is low.
4. 热板表面采用铣-磨-抛光工艺，表面质量高， 平面度符合热压板的国家验收标准
The surface of the hot plate adopts the milling-grinding-polishing process, the surface quality is high, and the flatness conforms to the national acceptance standard of the hot plate.

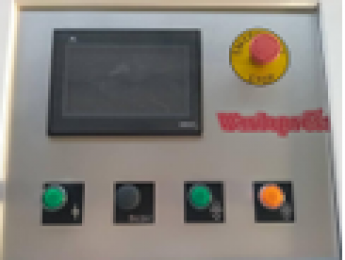

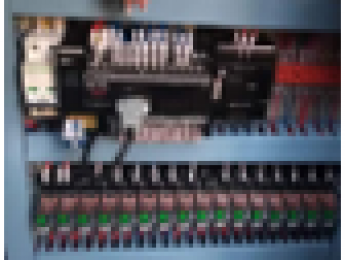

5. 电气控制采用 PLC 可编程序触摸屏控制， 操作简单，各种参数可通过人机界面随意读取， 技术领先， 自动化程度高，从而大大提高了生产线的可靠性，操作的灵活性。元件采用欧姆龙、施耐德等品牌，安全性能符合相应的国家标准。The electrical control adopts PLC programmable touch screen control, the operation is simple, various parameters can be read at will through the man-machine interface, the technology is advanced, and the degree of automation is high, which greatly improves the reliability of the production line and the flexibility of operation. The components are from Omron, Schneider and other brands, and the safety performance conforms to the corresponding national standards.

6. 整机配有安全护罩， 安全警示标识及声讯装置。
The whole machine is equipped with a safety shield, safety warning signs and sound devices.
7. 我公司主机部分传送属内部循环传送， 不易粘灰尘、 杂物， 最大程度减小产品的损坏， 有效提高生产产品质量。The transmission of the main unit of our company belongs to the internal circulation transmission, which is not easy to stick to dust and sundries, which minimizes the damage of the product and effectively improves the quality of the produced products.
8. 采用进口高性能耐热防粘胶膜， 使用寿命长。
Imported high-performance heat-resistant anti-adhesive film is used, which has a long service life.
9. 采用电加热为加热介质，最大程度地提高了 加热功率和 受热面的温度 均匀性；The use of electric heating as the heating medium maximizes the heating power and the temperature uniformity of the heating surface;

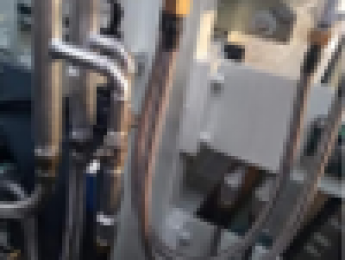

10. 进出油软管： 采用耐高温树脂， 外部钢丝增强软管， 使用周期长， 不易损坏；Oil inlet and outlet hose: high temperature resistant resin, external steel wire reinforced hose, long service life, not easy to damage;
11. 热压系统升温快、 热温均匀， 装料速度快, 热压时间短， 工作效率显著提高；The hot pressing system has fast heating, uniform heating temperature, fast charging speed, short hot pressing time, and significantly improved work efficiency;

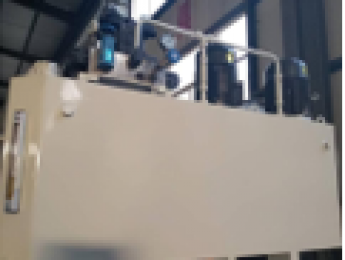

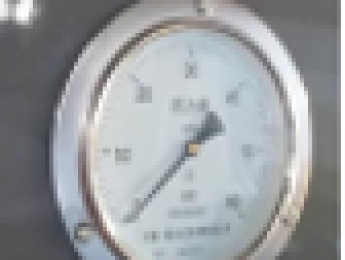

12. 液压系统： 采用双泵系统， 即可快速闭合与开启，又可根据产品所 需压力大小来调节，  液压元件采用日本油研阀等， 稳定、可靠 耐用 Hydraulic system: The double-pump system is used, which can be closed and opened quickly, and can be adjusted according to the required pressure of the product. The hydraulic components are made of Nippon Yuken valves, etc., which are stable, reliable and durable

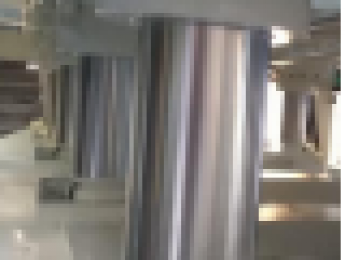

13. 油缸： 采用柱塞式， 柱塞热处理后磨削、 表面镀硬络并抛光， 耐磨损， 精度高， 使用专用密封圈可靠耐用；Oil cylinder: plunger type, the plunger is ground after heat treatment, the surface is hard plated and polished, wear-resistant, high precision, reliable and durable using special sealing ring;
